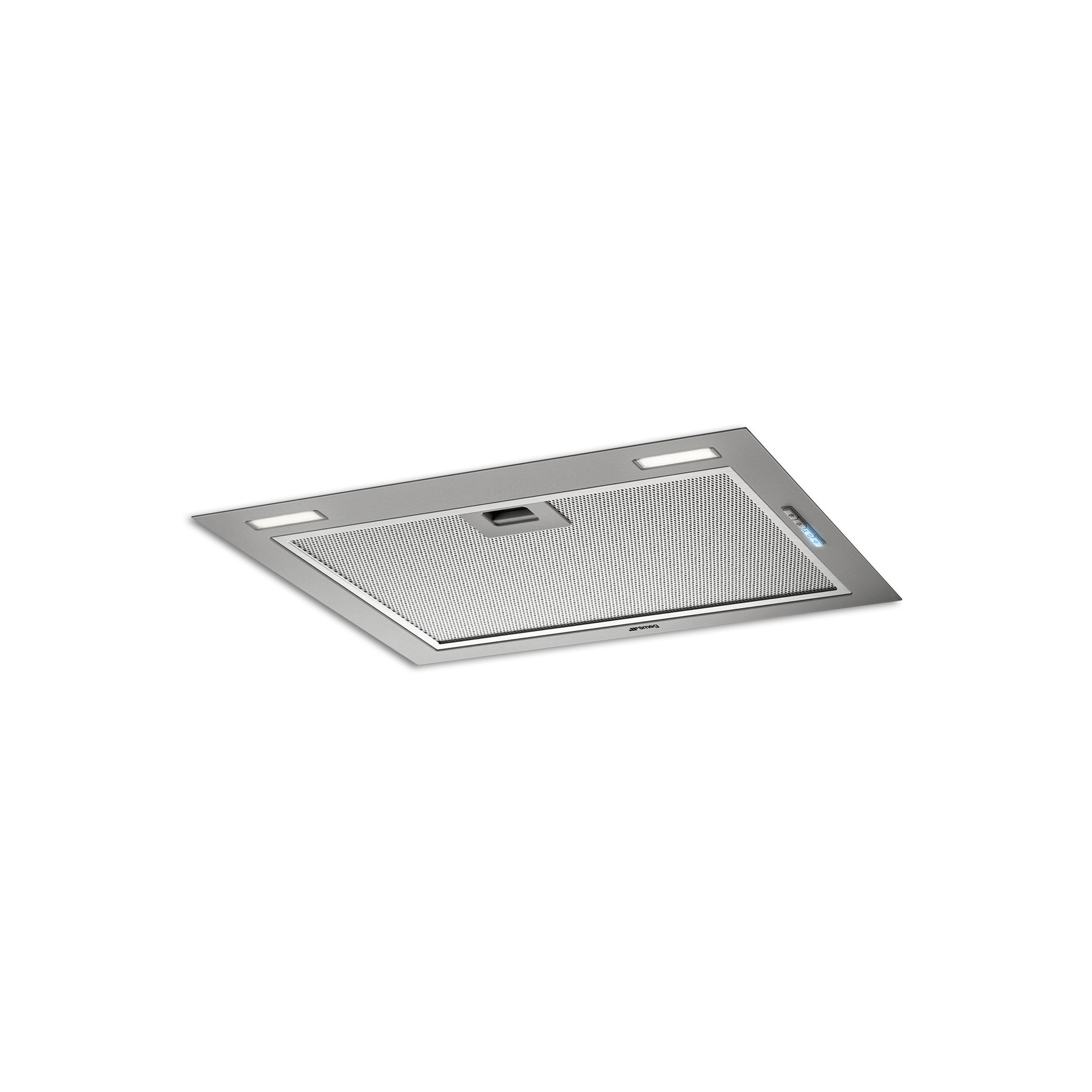

52 cm Smeg integrated extractor fan mounted under kitchen cabinets, with sleek design and control panel visible.

70 cm Intergrated Extractor | The Gas Boys |

R 6,569.00 ZAR
R 6,569.00 ZAR
Skip to product information
52 cm Smeg integrated extractor fan mounted under kitchen cabinets, with sleek design and control panel visible.
  • 52 cm Smeg integrated extractor fan mounted under kitchen cabinets, with sleek design and control panel visible.
  • 52 cm Smeg integrated extractor fan mounted under kitchen cabinets, with sleek design and control panel visible.
70 cm Intergrated Extractor | The Gas Boys |

70 cm Intergrated Extractor | The Gas Boys |

R 6,569.00 ZAR
R 6,569.00 ZAR

Program / Functions


No. of speeds:3


Aesthetics


Colour:Stainless steel
Finishing:Satin
Aesthetic:Universale
Design:Fully integrated
Material:Painted material
Type of steel:Brushed

Type


Product family:Hood
Hood Type:Integrated hood
Extraction:Extraction
Electronic control:Yes
EAN code:8017709333614

Controls


Control setting:Buttons
Led color:White

Technical Features

Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Charcoal filters: Extracting through charcoal filters or directly to the exterior lessens strong cooking odours considerably. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights:2
Light type:LED
Light Power:5 W
Light color temperature scale (°K):3500 °K
Free outlet maximum capacity:580 m³/h
Motor power:175 W
No. of filters:1
Anti-grease filters:Aluminium
Charcoal filters included:Yes
Filter replacement indicator:Yes
Minimum distance from GAS hob:650 mm
Minimum distance from ELECTRIC hob:500 mm
Vent outlet:150 mm

Performance / Energy Label

???Class_Arrows_A+++D_B???
Energy efficicency class ( EEC):B
Fluid Dynamic Efficiency class (FDEC):C
Grease Filtering Efficiency Class (GFEC):C
Lighting Efficiency Class (LEC):A
Annual Efficiency Consumption (AEChood):75 kWh/a
Fluid Dynamic Efficiency (FDE):20.9
Lighting Efficiency (LE):44.1 lux/W
Grease Filtering Efficiency (GFE):75.1 %
Air flow at minumum speed (Qmin):225 m³/h
Air flow at maximum speed (Qmax):580 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):46 dBA
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):65 dBA
Power consumption in stand-by mode (Ps):0.49 W
Time increase factor (F):1.2
Energy Efficiency Index:69.6
Measured air flow rate at best efficiency point (Qbep):345 m³/h
Measured air pressure at best efficiency point (Pbep):355 Pa
Measured electric power input at best efficiency point (Wbep):163 W
Nominal Power consumption of the light system (WL):5 W
Average illumination of the light on the cooking surface (Emiddle):221 lux
Sound power level at highest setting (Lwa):65 dBA

Electrical Connection


Plug:Not present
Electrical connection rating:285 W
Voltage:220-240 V
Frequency (Hz):50-60 Hz
Power supply cable length:1000 mm

Speed 1


Extraction rate IEC 61591:232 m³/h
Noise level IEC 60704-2-13:44 dBA
Power:106 W

Speed 2


Extraction rate IEC 61591:356 m³/h
Noise level IEC 60704-2-13:53 dBA
Power:132 W

Speed 3


Extraction rate IEC 61591:584 m³/h
Noise level IEC 60704-2-13:63 dBA
Power:192 W

Please Note. This is important. By law, any stove, hob or gas geyser has to installed by a Certified Installer. A list of installers in your area is available on the LPGSA website. Link is on the top bar. This is to ensure correct installation and optimal performance. Manufacturer warranty becomes void if product is not Installed by a professional.
