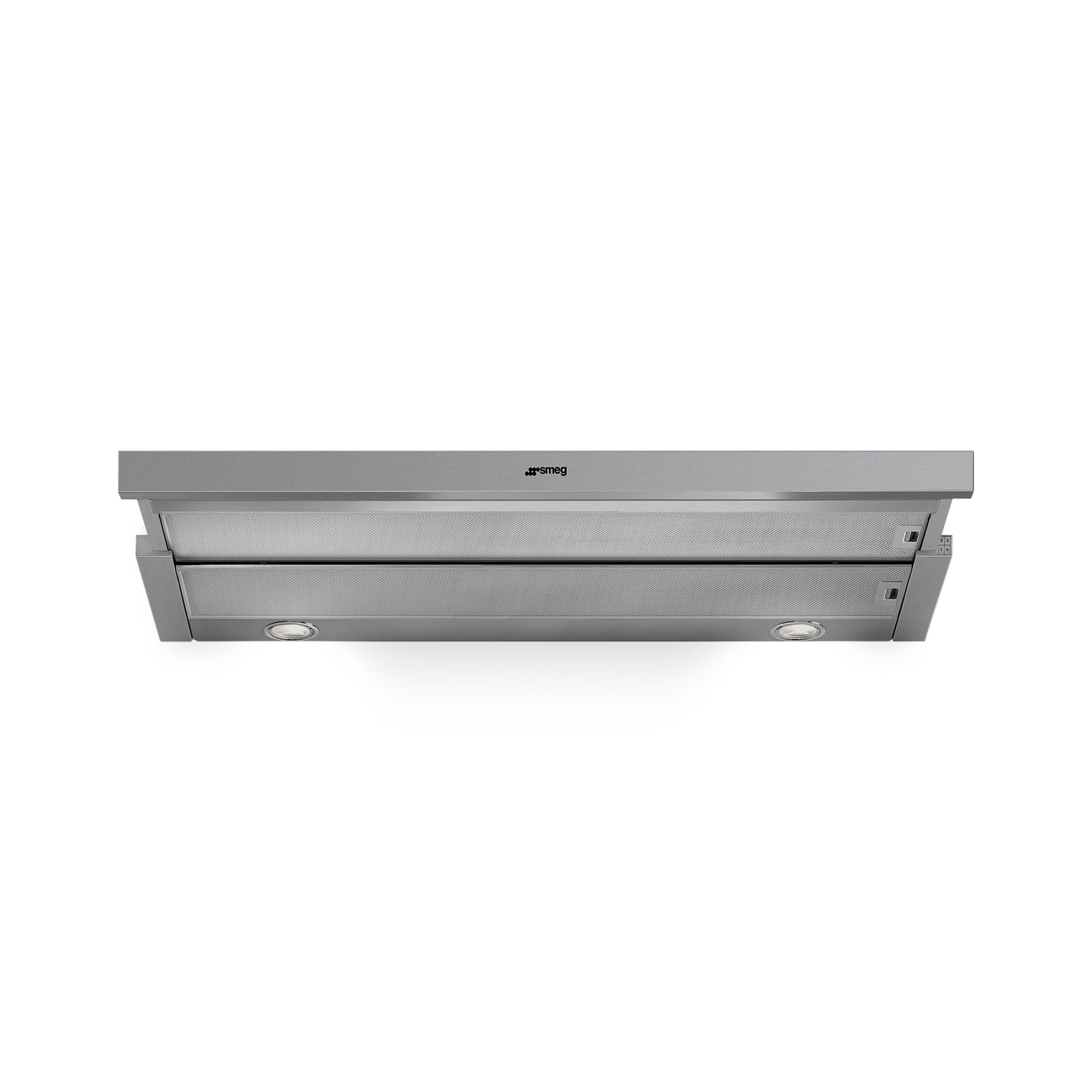

90 cm Semi-Integrated Telescopic Extractor | The Gas Boys |
R 7,919.00 ZAR
Sale price
R 7,919.00 ZAR
Regular price
Skip to product information
90 cm Semi-Integrated Telescopic Extractor | The Gas Boys |
R 7,919.00 ZAR
Sale price
R 7,919.00 ZAR
Regular price
Program / Functions
No. of speeds:3
Aesthetics
Colour:Stainless steel
Finishing:Satin
Aesthetic:Universale
Design:Telescopic
Material:Stainless steel
Type of steel:Brushed
Type
Product family:Hood
Hood Type:Integrated (semi) hood
Extraction:Extraction
EAN code:8017709205379
Controls
Control setting:Slider
Technical Features
No. of lights:2
Light type:LED
Light Power:3 W
Light color temperature scale (°K):3500 °K
Free outlet maximum capacity:600 m³/h
Motor power:175 W
No. of filters:2
Anti-grease filters:Aluminium
Minimum distance from GAS hob:650 mm
Minimum distance from ELECTRIC hob:500 mm
Vent outlet:150 mm
Non return valve:Yes
Performance / Energy Label
Energy efficicency class ( EEC):B
Fluid Dynamic Efficiency class (FDEC):C
Grease Filtering Efficiency Class (GFEC):C
Lighting Efficiency Class (LEC):A
Annual Efficiency Consumption (AEChood):75 kWh/a
Fluid Dynamic Efficiency (FDE):21
Lighting Efficiency (LE):76.1 lux/W
Grease Filtering Efficiency (GFE):76 %
Air flow at minumum speed (Qmin):240 m³/h
Air flow at maximum speed (Qmax):581 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):44 dBA
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):65 dBA
Time increase factor (F):1.2
Energy Efficiency Index:69.4
Measured air flow rate at best efficiency point (Qbep):352 m³/h
Measured air pressure at best efficiency point (Pbep):354 Pa
Measured electric power input at best efficiency point (Wbep):165 W
Nominal Power consumption of the light system (WL):4 W
Average illumination of the light on the cooking surface (Emiddle):304 lux
Sound power level at highest setting (Lwa):65 dBA
Electrical Connection
Plug:Not present
Electrical connection rating:215 W
Voltage:220-240 V
Frequency (Hz):50-60 Hz
Power supply cable length:1500 mm
Speed 1
Extraction rate IEC 61591:240 m³/h
Noise level IEC 60704-2-13:44 dBA
Power:108 W
Speed 2
Extraction rate IEC 61591:368 m³/h
Noise level IEC 60704-2-13:54 dBA
Power:137 W
Speed 3
Extraction rate IEC 61591:581 m³/h
Noise level IEC 60704-2-13:65 dBA
Power:199 W
