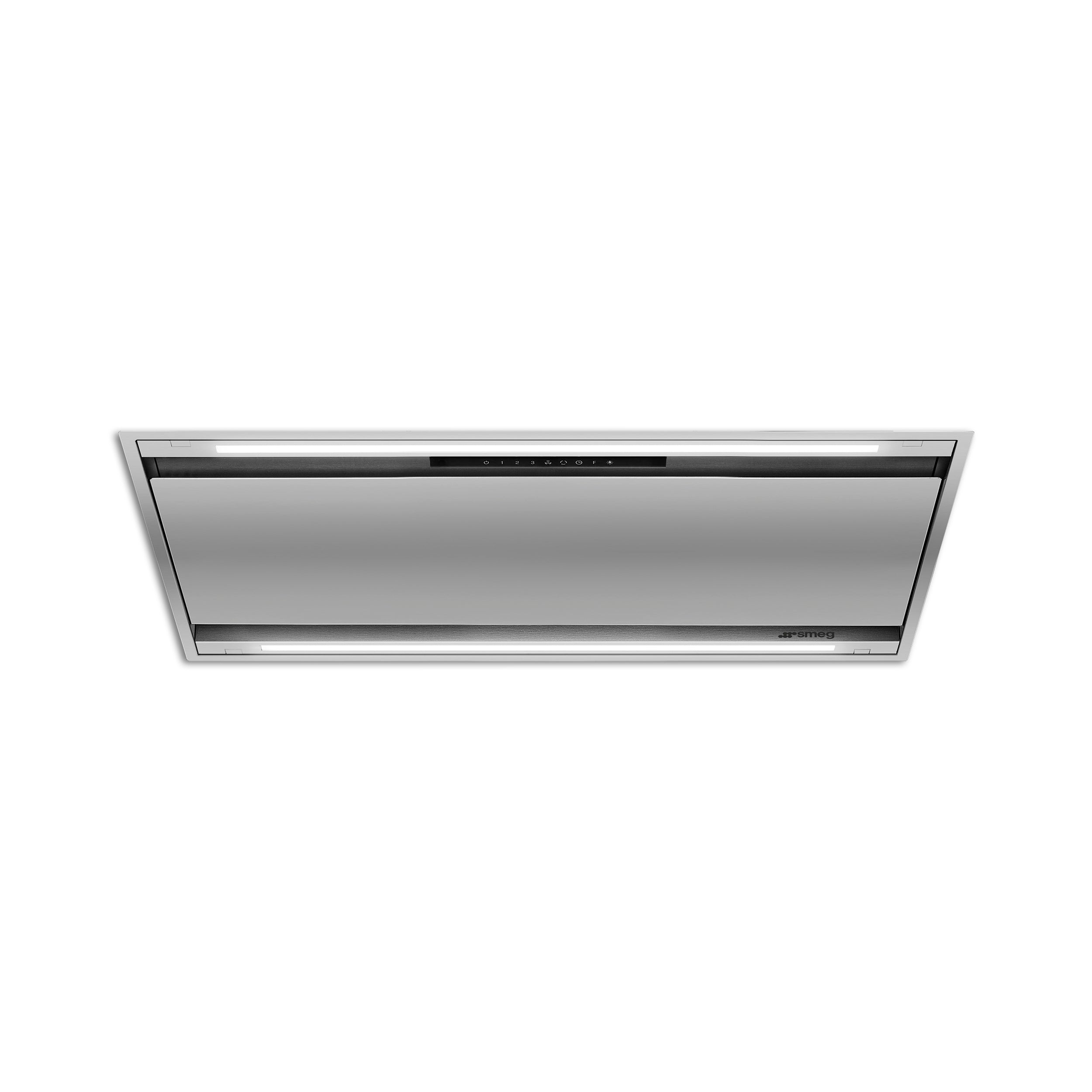

90 cm ceiling extractor fan by Smeg, integrated ceiling extractor in a modern kitchen setting.

90 cm Ceiling Extractor | The Gas Boys |

R 26,098.00 ZAR
R 26,098.00 ZAR
Skip to product information
90 cm ceiling extractor fan by Smeg, integrated ceiling extractor in a modern kitchen setting.
  • 90 cm ceiling extractor fan by Smeg, integrated ceiling extractor in a modern kitchen setting.
  • 90 cm ceiling extractor fan by Smeg, integrated ceiling extractor in a modern kitchen setting.
90 cm Ceiling Extractor | The Gas Boys |

90 cm Ceiling Extractor | The Gas Boys |

R 26,098.00 ZAR
R 26,098.00 ZAR

Program / Functions

Intensive/turbo setting: when extra fast extraction is required. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically. Connection between hob and hood
No. of speeds:3
Intensive speed:Yes
24h air filter function:Yes
Time-setting options:Automatic switch-off
Auto-vent 2.0:Yes

Aesthetics


Colour:Stainless steel
Finishing:Satin
Aesthetic:Universale
Design:Ceiling
Material:Stainless steel
Type of steel:Brushed

Type

Perimeter extraction panels: very efficient and aid noise reduction.
Product family:Hood
Hood Type:Ceiling hood
Extraction:Extraction
Electronic control:Yes
Perimeter extraction:Yes
EAN code:8017709326227

Controls


Control setting:Touch control back-lighted White


Technical Features

Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Tunable white from warm to cold Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights:2
Light type:LED
Light Power:7.4 W
Light color temperature scale (°K):3000 °K
Light color temperature range:3000° - 5700° °K
Free outlet maximum capacity:610 m³/h
Motor power:270 W
No. of filters:3
Anti-grease filters:Aluminium
Filter replacement indicator:Yes
Minimum distance from GAS hob:650 mm
Minimum distance from ELECTRIC hob:650 mm
Vent outlet:150 mm
Non return valve:Yes

Performance / Energy Label

???Class_Arrows_A+++D_B???
Energy efficicency class ( EEC):B
Fluid Dynamic Efficiency class (FDEC):B
Grease Filtering Efficiency Class (GFEC):D
Lighting Efficiency Class (LEC):B
Annual Efficiency Consumption (AEChood):94 kWh/a
Fluid Dynamic Efficiency (FDE):25.9
Lighting Efficiency (LE):25.9 lux/W
Grease Filtering Efficiency (GFE):72.0 %
Air flow at minumum speed (Qmin):208 m³/h
Air flow at maximum speed (Qmax):452 m³/h
Air flow at boost speed (Qboost):594 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):48 dBA
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):63 dBA
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost):69 dBA
Power consumption in stand-by mode (Ps):0.49 W
Time increase factor (F):1.1
Energy Efficiency Index:68.7
Measured air flow rate at best efficiency point (Qbep):335 m³/h
Measured air pressure at best efficiency point (Pbep):630 Pa
Measured electric power input at best efficiency point (Wbep):226 W
Nominal Power consumption of the light system (WL):15 W
Average illumination of the light on the cooking surface (Emiddle):303 lux
Sound power level at highest setting (Lwa):63 dBA

Electrical Connection


Plug:Not present
Electrical connection rating:305 W
Voltage:220-240 V
Frequency (Hz):50-60 Hz
Power supply cable length:1500 mm

Speed 1


Extraction rate IEC 61591:208 m³/h
Noise level IEC 60704-2-13:48 dBA
Power:129 W

Speed 2


Extraction rate IEC 61591:323 m³/h
Noise level IEC 60704-2-13:55 dBA
Power:171 W

Speed 3


Extraction rate IEC 61591:452 m³/h
Noise level IEC 60704-2-13:62 dBA
Power:217 W

Intensive speed


Extraction rate (IEC 61591):594 m³/h
Noise level IEC 60704-2-13:69 dBA
Power:290 W

Please Note. This is important. By law, any stove, hob or gas geyser has to installed by a Certified Installer. A list of installers in your area is available on the LPGSA website. Link is on the top bar. This is to ensure correct installation and optimal performance. Manufacturer warranty becomes void if product is not Installed by a professional.
