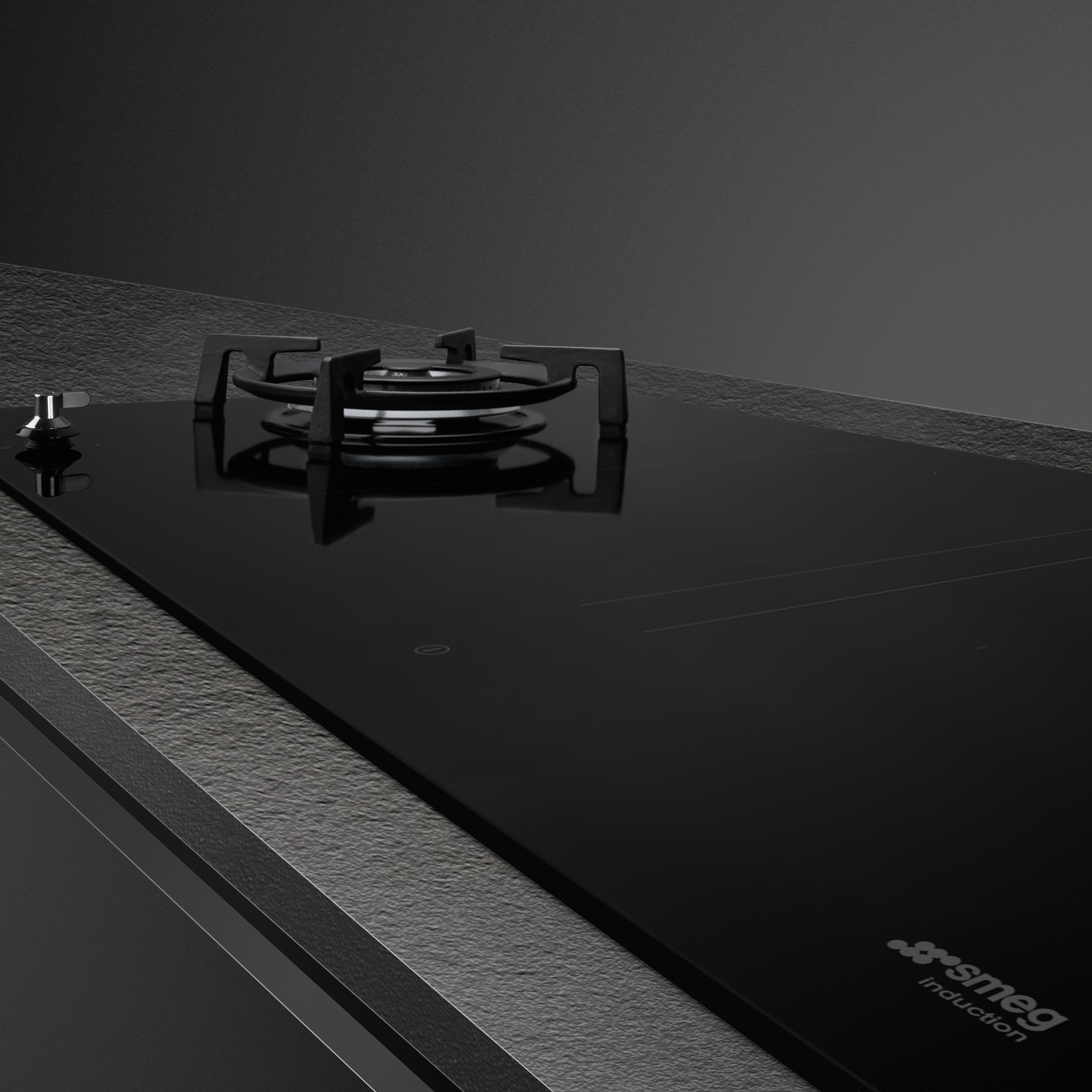

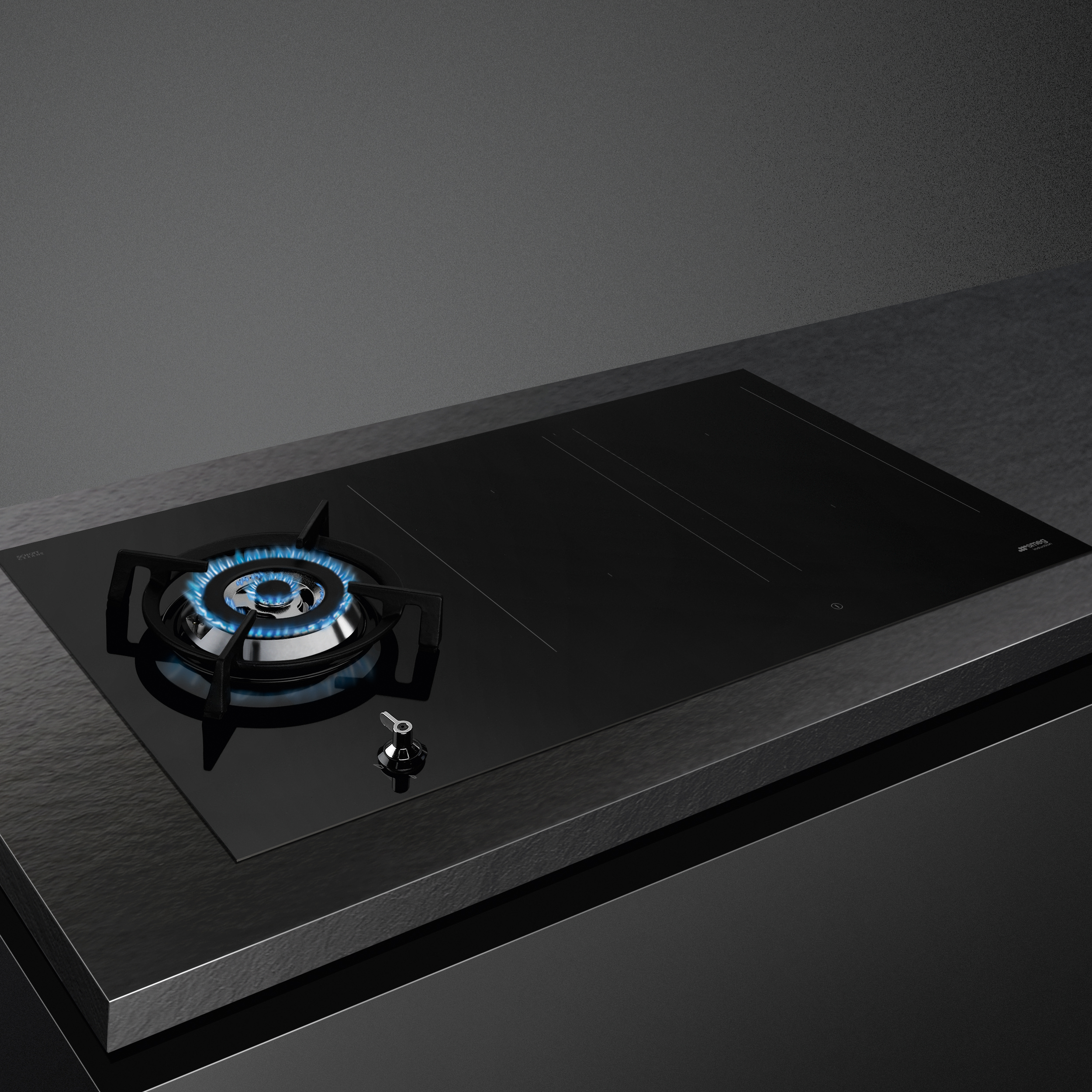

90 cm Dolce stil Novo Gas & Induction Hob
R47635.00
Aesthetics & Design
Premium Multi Slider touch control for each zone
Seamless black ceramic Eclipse glass surface
Reinforced steel-backed base for durability
Heavy-duty cast iron pan stands
Straight-edge glass finish
Controls: Front-mounted, black
Pan stands: Cast iron
Burners: Brass (Smeg Contemporary)
Type & Dimensions
Product Family: Hob
Installation: Standard / Traditional built-in
Size: 90 cm
Type: Mixed (Induction + Gas)
Power supply: Mixed
EAN: 8017709313579
Cooking Zones
Total zones: 5
1 Gas Ultra-Rapid burner – 6.0 kW
4 Induction zones (all with Booster) – 2.10 kW each
MultiZone flexible areas (2 zones)
Gas burner type: UR
Booster power per induction zone: 2.5 kW (double boosters up to 3 kW)
Multizone booster power: 3.7 kW
Zone positions:
1: Centre-left (Gas)
2: Rear-centre (Induction MultiZone)
3: Front-centre (Induction MultiZone)
4: Rear-right (Induction MultiZone)
5: Front-right (Induction MultiZone)
Features & Functions
Performance
Power levels: 9
Power Booster (4 zones)
Auto-Vent 2.0: automatic hob-to-hood connection
Quick Start, Rapid Level Selection, Keep Warm, Pause, Timer, Minute Minder
Grill function
Automatic merge of zones for pots or pans
Child Lock & Control Lock
Limited Power Consumption Mode (2400–7400W, 100W steps)
Safety
Overheat protection
Overfill shutdown
Gas safety valves
Automatic ignition
Residual heat indicators
Protection against accidental start
Permanent auto pot detection
Technical Details
Gas type: G20 Natural Gas
Electrical rating: 7400 W
Gas connection rating: 6000 W
Voltage: 220–240 V / 380–415 V
Frequency: 50/60 Hz
Current: 33 A
Cable included: Yes (single & double phase)
Cable length: 120 cm
Worktop cut-out: 482–486 x 844–848 mm
Performance & Efficiency
Energy Efficiency Index: 44.2
Standby activation: 1 min
Noise level (max): 73 dBA
Airflow at best efficiency: 320 m³/h
Power input at best efficiency: 139 W
