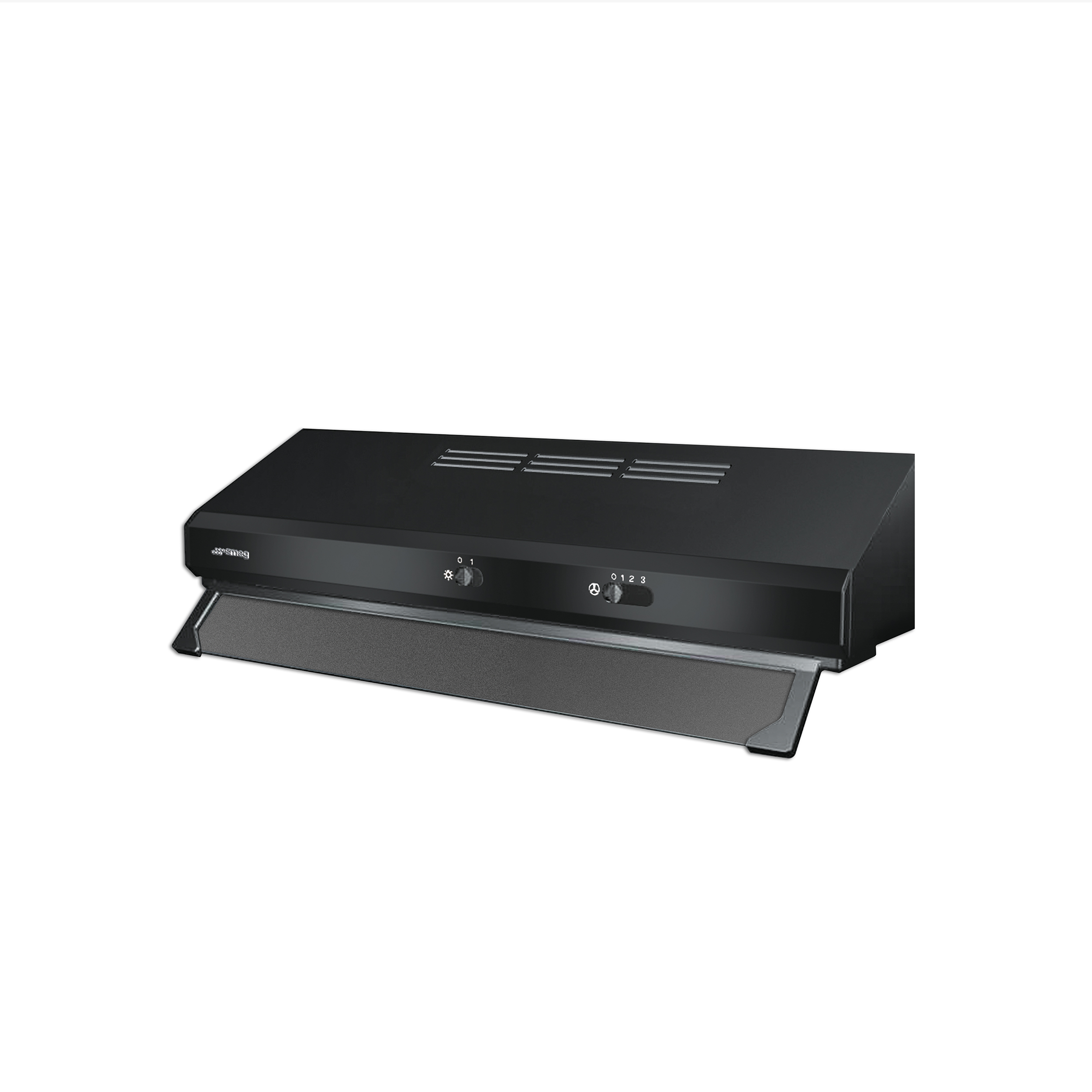

60 cm Semi-Integrated Extractor

PRODUCT OVERVIEW

This versatile kitchen ventilation system offers reliable performance with a balanced approach to energy efficiency and airflow, making it ideal for a wide range of cooking environments. Designed for both functionality and quiet operation, it ensures a comfortable cooking experience without compromising on performance.

ENERGY & EFFICIENCY

Rated at Energy Efficiency Class C, this unit delivers efficient operation with an annual energy consumption of just 60 kWh. It features an Energy Efficiency Index of 84.8, highlighting its optimized performance. The system includes a lighting system with Class E efficiency, providing 90 lux of illumination on the cooking surface at 11 lux/W. The grease filtering system achieves 40% efficiency (Class G), helping to maintain cleaner air in your kitchen. With a Fluid Dynamic Efficiency of 10 (Class E) and a time increase factor of 1.6, this unit ensures effective air circulation.

POWERFUL MULTI-SPEED EXTRACTION

Choose from three speed settings tailored to your cooking needs:

- Low Speed: 170 m³/h airflow at a quiet 58 dBA, using 85W

- Medium Speed: 240 m³/h airflow at 66 dBA, consuming 95W

- High Speed: 305 m³/h maximum extraction at 72 dBA, drawing 115W

The unit reaches optimal efficiency at 167 m³/h with 198 Pa air pressure and 92W power input, ensuring effective ventilation for everyday use. The airflow range spans from 170 m³/h minimum to 305 m³/h maximum, making it suitable for a variety of cooking scenarios.

TECHNICAL SPECIFICATIONS

- Power Requirements: 220-240V, 50-60Hz, 133W maximum rating

- Installation: Hardwired connection (plug not included)

- Cable Length: 1500mm for flexible positioning

- Noise Performance: Operates from 58 dBA minimum to 72 dBA maximum

- Standby Consumption: Not specified, but no additional information provided

- Optimal Performance Point: 167 m³/h at 198 Pa pressure

Perfect for kitchens that need dependable ventilation with a balance of performance and energy efficiency.
